The restoration of historic buildings, stone carvings, ceramics, stone materials, and historical sculptures is a very strict process. Especially when removing surface contaminants.In the past, when people cleaned cultural relics, stone materials, and cultural heritage surfaces, chemical cleaning or traditional manual grinding methods were often used. However, these methods may damage the surface of relics and stone.May also change the original look of these historical objects.
For the cleaning and restoration of historical sites, the goal is not only to remove surface contaminants. It is also important to protect the original material, historical traces, and artistic details as much as possible.In these situations, pulsed laser cleaning machine are being used more and more in cultural heritage protection. A pulsed laser cleaning machine uses short laser pulses to act on the contamination layer. It can achieve non-contact and controllable layer-by-layer cleaning.
With proper parameter adjustment and professional operation, pulsed laser cleaning can remove black weathering layers, oxide layers, rust, smoke deposits, dust, and some surface stains. At the same time, this machine can reduce the risk of mechanical damage and chemical residue on the base material.

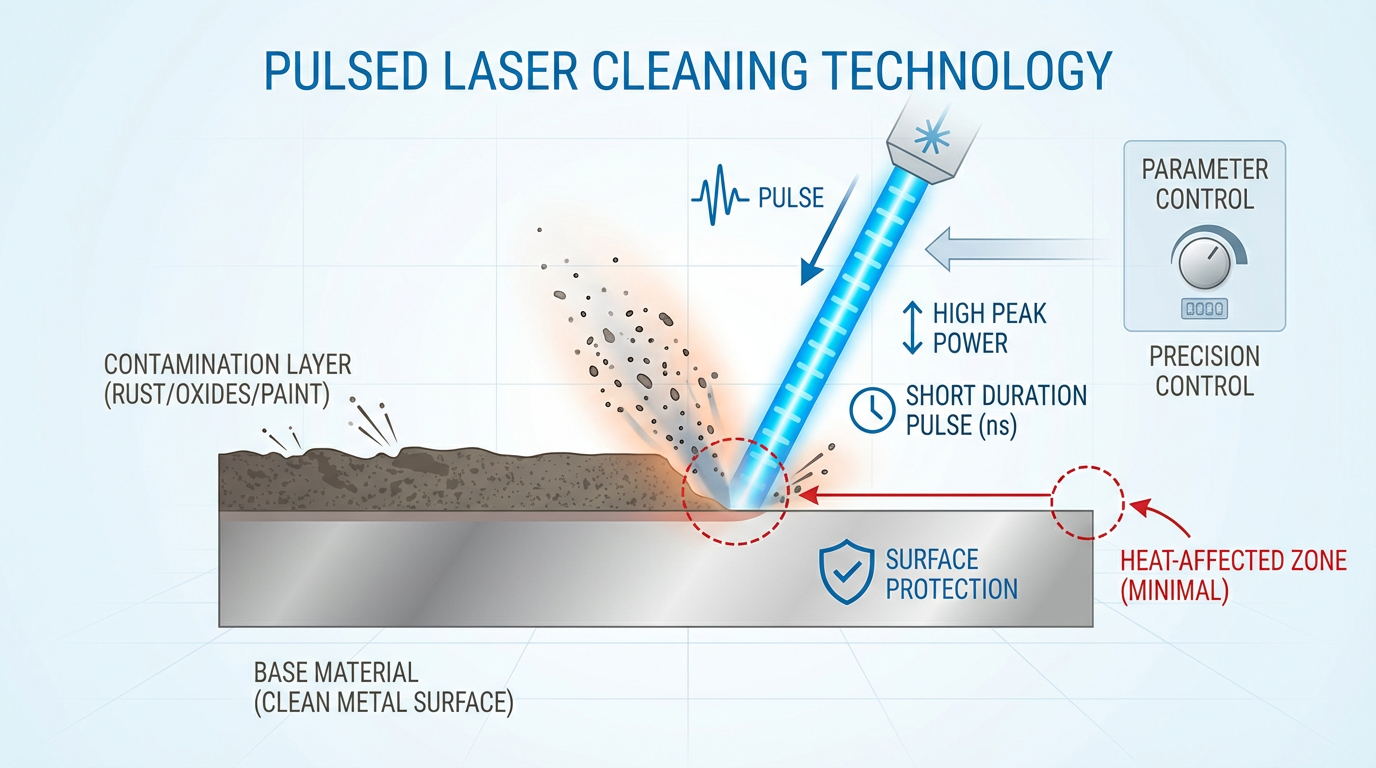

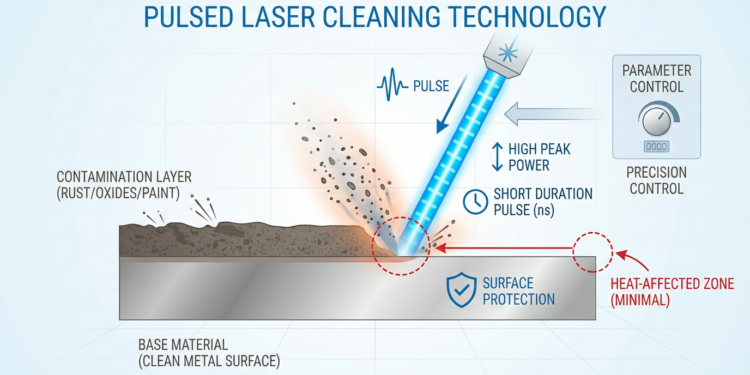

Pulsed Laser Cleaning Machine Work Principle
Pulsed laser cleaning is a cleaning technology that uses short, high-energy laser pulses to remove surface contaminants. Unlike continuous laser cleaning, pulsed laser cleaning machine does not output energy all the time. It releases laser energy in very short pulses.The advantage of this working method is that laser energy can focus on the contamination layer. It can reduce heat build-up inside the base material.
Many historical materials have already gone through long-term aging, weathering, or corrosion. If the heat effect is too strong, it may cause color change, surface burning, or changes in the material structure.

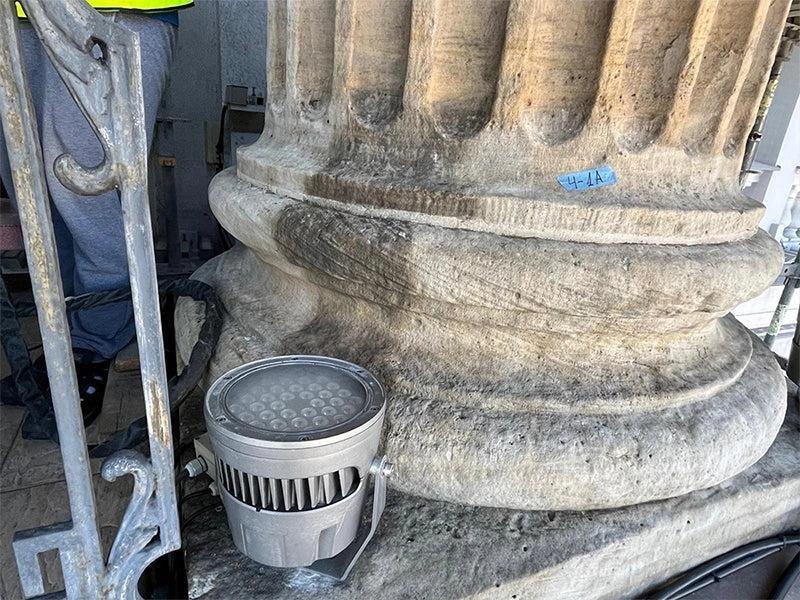

Mission San Luis Rey Church is a historic coastal building. Because it has been exposed to the coastal environment for a long time, the sandstone surface of the building was affected by salt mist, moisture, air pollution, and natural weathering. Over time, contamination layers formed on the surface.The warm color of the sandstone was covered by dirt. The historical texture and stone details also became less clear.
For this kind of porous sandstone building, traditional cleaning methods have higher risks. Sandblasting or mechanical grinding may damage the fine particle structure on the stone surface. Chemical cleaning may enter the pores of the stone and cause residue, color change, or secondary damage.
So, in the restoration process, laser cleaning can be used as a gentler and more controllable solution.By adjusting the power, frequency, pulse width, scanning speed, and focal distance of the laser cleaning machine, the operator can achieve more precise cleaning control. It suitable for cultural relics, artworks, historic buildings, and other high-value restoration work.
Why Cultural Heritage Restoration Needs a Gentler Cleaning Method？
Cultural relic materials are usually non-renewable and irreplaceable. Even a small area of surface damage may affect their historical value, research value, and display value.
For example, stone surfaces may have weathering, pores, and tiny cracks. Bronze relics may have complex oxide layers and historical patina. Ceramics and porcelain may have glaze layers, cracks, or deposits. Murals and sculptures may have pigment layers, soot layers, or biological deposits. Outdoor historic buildings may be affected by pollution, rain, salt, and smoke for a long time.Traditional sandblasting and mechanical grinding can easily wear the surface. Chemical cleaning may leave residue or react with the relic material.
Compared with these methods, laser cleaning does not need direct contact with the relic surface. It also does not need acid, alkali, or organic solvents. So it is more suitable for restoration work that needs higher cleaning accuracy and safety.
Contaminants That Pulsed Laser Cleaning Can Remove
Pulsed laser cleaning can be used to remove many common surface contaminants, including:
- black weathering layers;
- oxide layers;
- rust and metal corrosion products;
- soot and smoke deposits;
- dust and soil deposits;
- some oil stains and surface stains;
- pollution crusts on stone surfaces;
- deposits on ceramics and porcelain;
- some graffiti and old coatings.
Although a pulsed laser cleaning machine can remove many types of contaminants, it is not a solution whaich can solve everything issues. It is not suitable for every material or every contaminant.The actual cleaning result depends on the base material, contamination thickness, color, absorption rate, surface condition, and laser parameter settings.
Before cleaning cultural relics, old stone carvings, or stone materials, a sample test should be done according to the material condition.
Cultural Heritage Materials Suitable for Laser Cleaning
Pulse laser cleaning can be used for many types of relics and historical materials. However, different materials need different parameter settings.
| Material Type | Common Cleaning Content | Notes |
| Stone | Black weathering layer, soot, dust, graffiti, pollution crust | Parameters should be adjusted according to stone porosity and color |
| Bronze relics | Oxide layer, corrosion products, surface deposits | Avoid removing too much historical patina |
| Iron relics | Rust layer, oxide layer | Control heat effect and cleaning depth |
| Ceramics | Surface stains, soot, deposits | Protect glaze and tiny cracks |
| Porcelain | Dust, light contaminants | Low energy and small-area testing are recommended |
| Wooden relics | Some surface deposits | Use with great care to avoid heat damage |
| Murals / painted surfaces | Soot, surface contaminants | Must be tested and operated by professionals |
For high-value cultural relics, the goal is not to make the object look completely new. The goal is to remove harmful contamination layers while protecting the original material and historical traces.
Laser Cleaning vs Traditional Cleaning Methods
| Cleaning Method | Advantages | Limitations |
| Pulsed laser cleaning | Non-contact, high precision, no chemical residue, layer-by-layer cleaning, controllable heat effect | Needs professional equipment and trained operators |
| Chemical cleaning | Effective for some stains, mature cleaning method | May cause chemical residue, corrosion, or material reaction |
| Sandblasting / mechanical cleaning | Fast cleaning speed, suitable for some hard industrial surfaces | Too rough for cultural relic surfaces and may cause wear |
| Manual cleaning | Flexible and suitable for small areas | Low efficiency, result depends on operator experience |
| Water cleaning / high-pressure cleaning | Lower cost, suitable for some normal surfaces | May cause water to enter the material, salt migration, or structural damage |
For cultural heritage restoration, the main value of pulsed laser cleaning is not only cleaning efficiency. The key value is control.
The operator can adjust laser power, pulse width, scanning speed, and focal distance according to the relic material and contamination layer. This helps achieve a gentler and more precise cleaning result.
Advantages of Pulsed Laser Cleaning Machines in Cultural Relic Restoration
1. Non-contact cleaning reduces mechanical damage
Laser cleaning does not need sand, brushes, or metal tools to rub the relic surface. So it can reduce the risk of scratches, wear, and surface structure damage.
2. No chemical agents, more eco-friendly
Pulsed laser cleaning usually does not need acid, alkali, or solvents. This reduces chemical waste, secondary pollution, and later treatment cost.This is especially important for museums, restoration labs, and outdoor heritage protection projects.
3. Layer-by-layer cleaning
The surface of cultural relics often has many layers of deposits, such as soot, oxide layers, pollution crusts, and historical patina.Pulsed laser cleaning can remove layers more carefully by adjusting the parameters. This helps avoid removing too much material at one time.
4. Smaller heat effect
Compared with continuous laser cleaning, pulsed laser cleaning releases energy in a shorter time. It is more suitable for heat-sensitive materials.With correct parameters, it can reduce heat transfer into the base material.
5. Suitable for complex surfaces
Many sculptures, stone carvings, inscriptions, and reliefs have small textures and complex shapes.Laser cleaning can work on local areas. This helps protect fine details.
6. Suitable for on-site work
Portable pulsed laser cleaning machines can be used at outdoor sites, historic buildings, monuments, archaeological sites, and museum restoration areas.They provide a more flexible solution for on-site protection work.
How to Choose a Suitable Pulsed Laser Cleaning Machine
Different relic materials, contaminant types, and working environments have different requirements for laser cleaning equipment.When choosing a machine, the following points should be considered.
1. Power Selection: 200W–500W Pulsed Laser Cleaning Machines Are Recommended
For most cultural heritage restoration work, 200W–500W pulsed laser cleaning machine are a common choice.Lower power is suitable for delicate relics, small artworks, ceramics, bronze relics, and other sensitive surfaces.
Higher power is more suitable for stone facades, outdoor sculptures, monuments, and larger areas of contamination.
For cultural relic restoration, control is more important than cleaning speed. The machine should be selected based on several factors:
- relic material;
- thickness of the surface contamination layer;
- cleaning area;
- whether it is outdoor work;
- heat control requirements;
- operator experience.
2. Machine Structure: Portable Design Is Better for On-Site Restoration
Many cultural heritage restoration jobs are not done in a standard factory environment. They are often done in museums, heritage sites, historic buildings, outdoor monuments, or archaeological areas.These working places require the machine to be easy to move. In many cases, a portable laser cleaning machine or handheld laser cleaning machine is a better choice.
HANTENCNC provides portable pulsed laser cleaning equipment. It is suitable for moving between different working places.For field archaeology, historic building maintenance, and outdoor sculpture cleaning, portable design can reduce moving difficulty and improve on-site restoration efficiency.
3. Cooling Method: Air Cooling Is Better for Mobile Work
Laser cleaning machines usually have two cooling methods: air cooling and water cooling.For outdoor cleaning and cultural relic restoration, air cooling is more convenient. Air cooling does not need an external water cooling system. The structure is more compact, and the machine is easier to set up.
For outdoor sites, exhibition halls, mobile restoration projects, and temporary work areas, air-cooled equipment is easier to use and maintain.Compared with water-cooled equipment, air-cooled machines usually have these advantages:
- lighter machine structure;
- easier installation;
- lower maintenance cost;
- better for mobile work;
- lower requirements for the work site.
4. Focal Distance Control: Digital Focus Display Is Safer
In cultural relic restoration, the distance between the laser head and the surface directly affects the cleaning result.
If the focal distance is not stable, the cleaning may become uneven. In some cases, local over-cleaning may happen.
The HANTENCNC 300W pulsed laser cleaning gun can be equipped with a digital focus display. This helps the operator see the working distance in real time and keep a more stable cleaning condition.
For fragile surfaces, complex textures, or high-value relics, this function can help reduce operation risk and improve cleaning control.
Application Areas of Pulsed Laser Cleaning Machines
Pulsed laser cleaning machines can be used in many cultural heritage and artwork restoration fields, including:
- museum relic cleaning;
- oxide layer removal on bronze relics;
- stone carving and stone tablet cleaning;
- contaminant removal on historic building facades;
- soot and weathering layer cleaning on outdoor sculptures;
- surface stain cleaning on ceramics and porcelain;
- on-site restoration at archaeological sites;
- historical monument maintenance;
- stone cleaning for religious buildings;
- graffiti and pollution deposit removal.
Before formal use, sample testing should be done according to the material type and contamination condition. This helps find better laser parameters.
Conclusion
Cultural heritage restoration needs more than cleaning efficiency. It needs safety, precision, and control.Pulsed laser cleaning technology uses non-contact cleaning, no chemical agents, and adjustable parameters. It provides a modern cleaning solution for cultural relics, stone materials, bronze relics, ceramics, and historical sites.
For museums, restoration teams, archaeological teams, and historic building maintenance projects, choosing the right pulsed laser cleaning equipment can help remove contaminants while better protecting the original material and historical value.If you are looking for laser cleaning equipment for cultural heritage restoration, HANTENCNC can provide sample testing, machine selection advice, and custom cleaning solutions based on your material type, contamination condition, and work environment.
